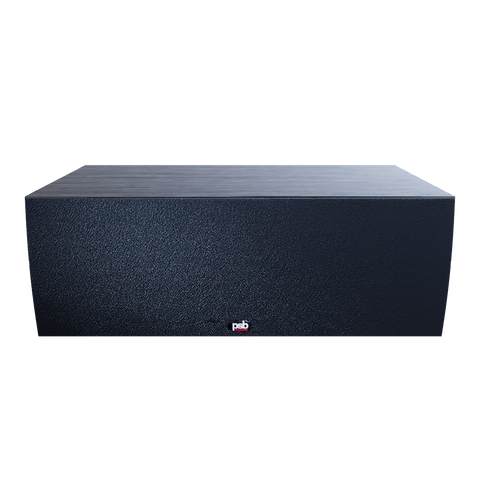

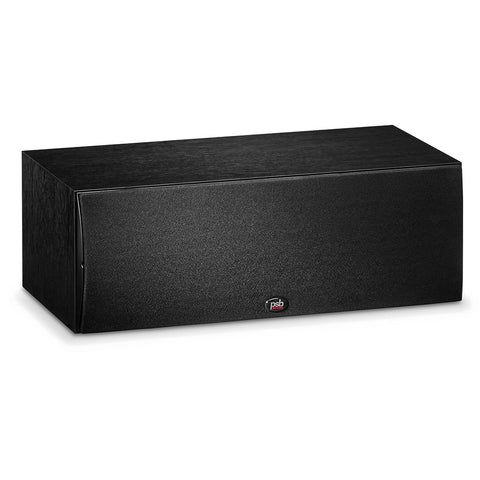

PSB Imagine XC - Center Channel Speaker

No reviews No reviews
SKU: IMAGINE XC UPC Code: 627523200252
Add to compare In comparison

Performance focused

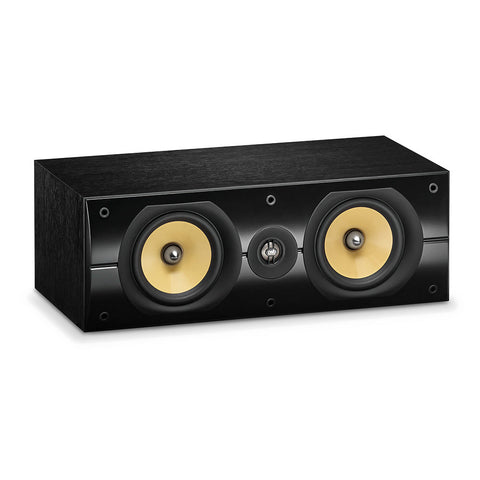

Featuring a dual-woofer horizontal format with a pair of 5¼” (133mm) woofers, the Imagine XC is designed for optimal performance when paired with other components in your setup. PSB has matched the Imagine XC carefully in timbre with the other Imagine X models for the best versatility when setting up your home theatre system.

Experience rich, detailed sound
Even the most demanding audiophile will appreciate the rich and detailed cinematic sound that flows from this speaker. Thanks to PSB’s expert approach to the design of the Imagine XC, music and movie sound effects have an added layer of authenticity. With the ability to bring out the musical essence of everything you choose to play, the XC is a welcome addition to your system setup.

Simple and attractive
Just like the other models in the Imagine X range, the XC boasts a simplified and attractive black cabinet design, and can easily be incorporated into any room in your home with ease. The minimalist design of this center channel speaker allows it to blend well into your system setup and it will also look at home next to modern flat profile TVs.

Specifications

Frequency Response
On Axis @ 0° ±3dB 50 - 23,000Hz
On Axis @ 0° ±1 1/2dB 65 - 20,000Hz
Off Axis @ 30° ±1 1/2dB 65 - 10,000Hz
LF Cutoff -10dB 45Hz
Sensitivity
Anechoic Chamber 88dB
Listening Room 90dB
Impedance
Nominal 8 Ohms
Minimum 4 Ohms
Input Power
Recommended 20 - 150 Watts
Program 150 Watts
Acoustic Design
Tweeter (Nominal) 1" (25mm) Titanium Dome with Ferrofluid

Neodymium Magnet

Woofer (Nominal) 2 x 5 1/4" (133mm) Injection Moulded Clay/Ceramic reinforced

Polypropylene Cone

Rubber Surround

Dual Magnet

Crossover 1,800Hz, LR4
Internal Volume 0.58 cu ft (16.4L)
Design Type Bass Reflex Rear Port
Dimensions / Weight / Finish
Size (W x H x D) 19 1/8 x 6 3/4 x 11 1/8" *

485 x 170 x 280mm

Weight Net - 19.8lb (9kg)/each

Sipping - 22.2lb (10.1kg)/each

Finish Black Ash
Notes * Non-metric measurements are approximate.

All specifications are subject to change without notice.
